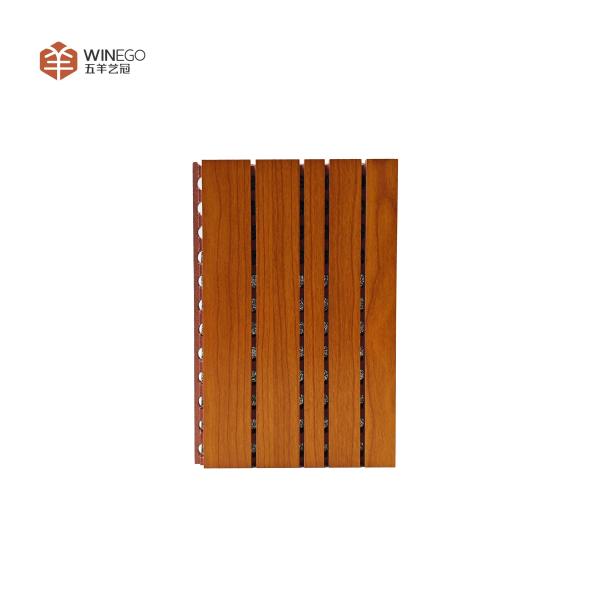

Create Intelligent Soundscapes Eco-Friendly Acoustic Panels by Winego

Brand Name : Winego

Model Number : GA-13/3

Certification : CE, FSC, France A+,ISO9001

Place of Origin : Guangzhou, China

MOQ : 200

Price : USD7.88-18.88 PER sqm

Supply Ability : 10000sqm per month

Delivery Time : 15-21 working days

Packaging Details : 249*15*18cm with 10pcs per carton

Name : Grooved MDF Wood Fiber Acoustic Panel

Base material : Fire Retardand MDF/ Standard MDF / A GRADE BOARDE

Surface finish : Veneer / Melamine / HPL

Back : Black fleece / Black fabric/Soundtex fleece

Standard Size : 133/197*2440mm standard other customized

Thickness : 15/18/21mm

NRC : 0.85

Type : Sound absorption

Application : Theater,Office, Auditorium etc.

Installation : By nail gun or clip system

Environmental Protection : E1 or E0

Contact Now

Create Intelligent Soundscapes Using Eco-Friendly Acoustic Panels by Winego

Description:

Winego Grooved Acoustic Panels deliver cutting-edge sound control paired with adaptable design. With precisely carved front grooves and scientifically calculated rear perforations, these panels absorb mid-to-low frequency noise effectively. Ideal for lecture rooms, broadcast studios, museums, and co-working spaces, their performance is engineered to optimize voice clarity, musical balance, and ambient comfort. An NRC rating of 0.85 or higher ensures their efficiency in minimizing echo and reverberation.

Beyond their acoustic strength, these panels elevate any room’s aesthetics. Whether selected in a matte melamine finish or a natural wood veneer, they blend seamlessly into modern and classical interiors alike. Eco-conscious construction and fire-resistant properties (certified under BS476-PART 7 CLASS 1) make them a reliable option for sustainable building projects. Their availability in customizable formats makes them a favorite among designers looking to combine acoustic function with creative freedom.

Winego panels do more than reduce noise—they reshape how we experience space.

Product Features:

• NRC up to 0.9 for effective sound absorption
• Fire-rated to BS476-PART 7 CLASS 1 for public safety
• Custom dimensions, groove layouts, and finishes available
• Built from low-emission, sustainable materials
• Suitable for high-traffic and acoustically sensitive environments

Specificatins:

Name Grooved MDF Wood Fiber Acoustic Panel
Base Materials MDF/FR MDF/HDF
Finish Veneer/Melamine/HPL fire-proof
Model GA-13/3
Size W 133/197*L 2440mm
Environmental protection E1 or E0
Warranty 2years
Installation Nail gun / Keel
MIN. order quantity 200 SQM
Packing details 10pcs per CTN
CTN size: 2490*150*180mm
Delivery time 3 weeks
Original place Guangzhou,China
Payment term

TT :50% deposit

Balance before shipment

Additional service OEM
NRC 0.85
Certificate CE,FSC,France A+,ASTM-E84 1,BS476 PART7
Brand Winego

Create Intelligent Soundscapes Eco-Friendly Acoustic Panels by Winego

Create Intelligent Soundscapes Eco-Friendly Acoustic Panels by Winego

Create Intelligent Soundscapes Eco-Friendly Acoustic Panels by Winego

Create Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by WinegoCreate Intelligent Soundscapes Eco-Friendly Acoustic Panels by Winego

Application:

Performance Halls, Studios, Conference Rooms, Museums, Offices, Lecture Halls, Broadcasting Rooms

Installation Instructions:

Method A:

  1. Attach the keel to the wooden battens using gun nails.

  2. Secure the panels by inserting clips into the keel.

  3. Begin installation from the bottom left, working your way up and to the right.

  4. Adjust the clips as necessary to ensure proper alignment.

  5. Maintain a 3mm gap between the edges of each panel.

Method B:

  1. Level the wall with wooden battens.

  2. Fill the space with fiberglass acoustic wool for added sound absorption.

  3. Secure the panels onto the battens using gun nails.

FAQ:

1. What sizes are available?

- Standard sizes are 133*2440 mm and 197*2440 mm with thicknesses of 12mm, 15mm, and 18mm.

2. What materials are the panels made from?

- Options include MDF, MgO boards, carbon fiber boards, and solid wood.

3. Can I customize the panel finishes?

- Yes, finishes can be customized with melamine, veneer, HPL, and more.

4. What is the NRC of these panels?**

- The NRC can reach up to 0.9, providing excellent sound absorption for both commercial and privated space.
